Fan Motors - High-Performance and Energy-Efficient Solutions for Optimal Airflow
Product Features
Fan Motor Introduction
In the field of ventilation and air circulation, the performance of fan motors is critical to achieve optimal airflow. Our fan motors are specifically designed to provide high performance and energy-saving solutions for HVLS (High Volume Low Speed) fans and other ventilation systems. Focusing on durability, efficiency and versatility, our fan motors are designed to meet the demanding requirements of a variety of applications.
Efficient and Cost-Saving
One of the standout features of our fan motors is their high efficiency. These motors are designed to provide maximum airflow while minimizing energy consumption. This energy-efficient design not only helps reduce operating costs, but also contributes to a more sustainable environment. By efficiently powering HVLS fans, our motors help maintain comfortable temperatures in large spaces, reducing reliance on traditional air conditioning systems. This can result in significant savings on energy bills, making our fan motors a smart investment for any facility.
Durable Construction, Built to Last
Our fan motors are made from premium materials to withstand the rigors of continuous operation in demanding environments. The rugged design ensures longevity and reliability, even in harsh conditions. Each motor is rigorously tested to meet our high standards for performance and durability. This commitment to quality means you can trust our motors to provide consistent airflow for years to come, reducing the need for frequent replacement and maintenance.
Multi-Functional Applications Across Industries
Our fan motors are suitable for a variety of applications, especially HVLS fans used in large industrial, commercial and agricultural environments. Whether you need to cool a warehouse, gymnasium or livestock facility, these motors provide an effective and efficient airflow solution. Their versatile design integrates easily into a variety of ventilation systems, ensuring you can maintain optimal airflow without compromising function or performance.
Technical Specifications of the Aloecore Series
|
Model |
Power |
Torque |
Efficiency rate |
Motor pole |
Rotation |
IP |
Current |
Motor Weight |
Motor Diameter |
Magnet Wire |
Magnet Iron |
Ground insulation |
Pressurization Test standard |
|
Core15 |
1.5KW |
230Nm |
81.50% |
44 |
60rpm |
IP55 |
3.4A |
42.5KG |
400mm |
Anti 200°C |
N48SHT |
300mΩ |
2000V |
|
Core8 |
0.8KW |
95Nm |
5.50% |
32 |
85rpm |
IP55 |
2.8A |
25.5KG |
270mm |
Anti 200°C |
N48SHT |
300mΩ |
1500V |
Product Details

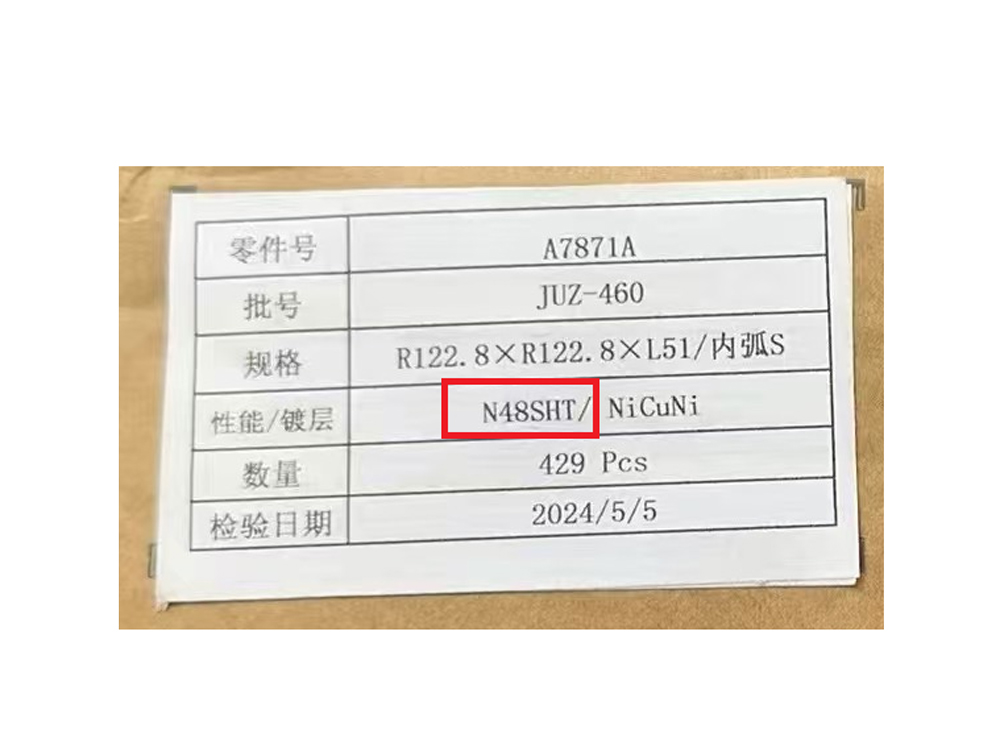

● N48SHT magnetic steel is a high-performance material designed to withstand extreme temperatures up to 170°C, ensuring reliable operation in demanding environments. Its advanced thermal resistance and durability make it ideal for applications requiring stable magnetic properties under high-temperature conditions.
Frequency conversion speed controller

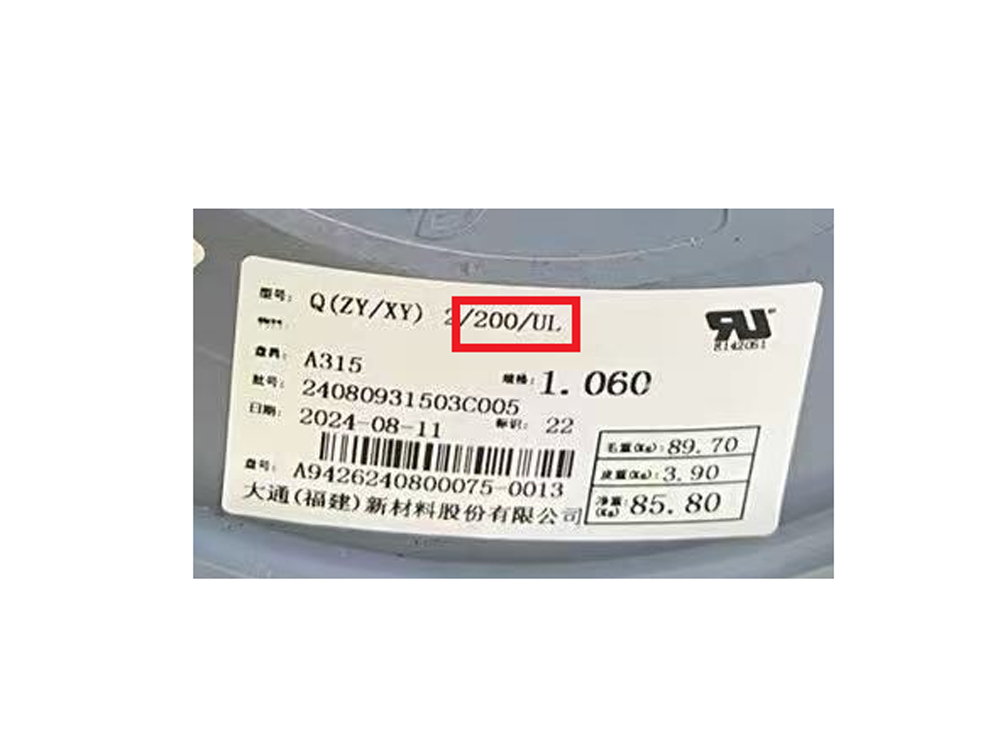

●UL-approved magnetic wire is a high-quality, certified component designed to withstand temperatures up to 200°C, ensuring safety and reliability in demanding electrical applications. Its superior thermal resistance and compliance with UL standards make it ideal for use in motors, transformers, and other high-performance equipment operating under extreme conditions.
Fan blade

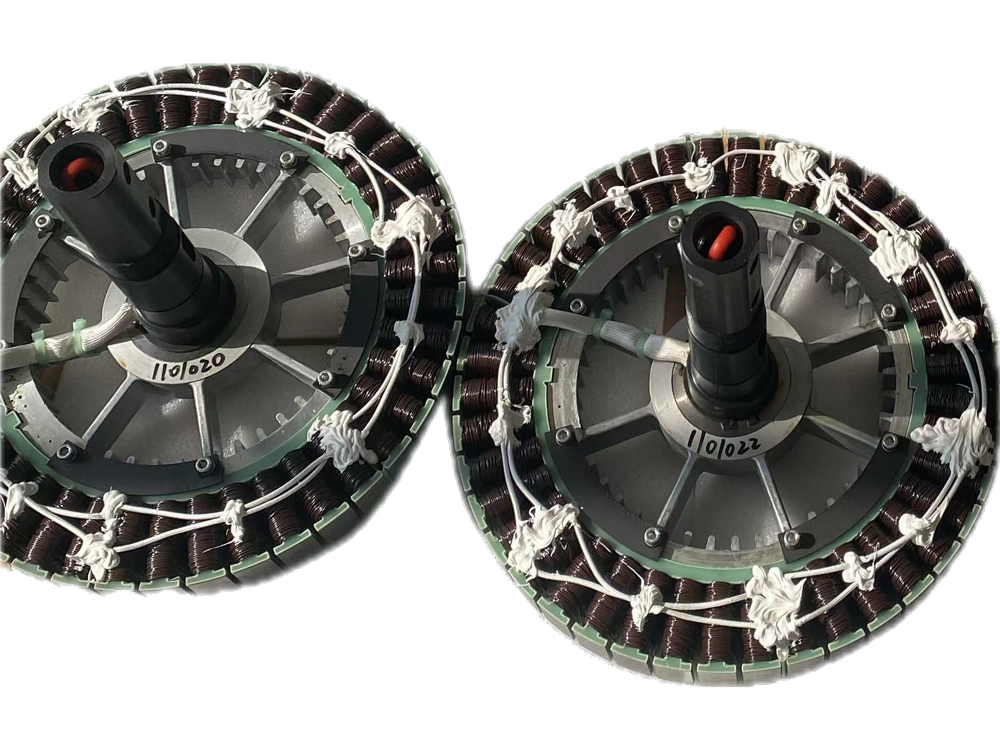

● The oil-immersed stator is constructed entirely from high-temperature-resistant materials, ensuring exceptional durability and performance in demanding operating conditions. This design provides superior heat dissipation, enhanced insulation, and reliable operation, making it ideal for high-power applications such as industrial motors, transformers, and heavy machinery. The use of advanced materials ensures long-term stability and efficiency, even under extreme thermal stress.
Fan blade connector

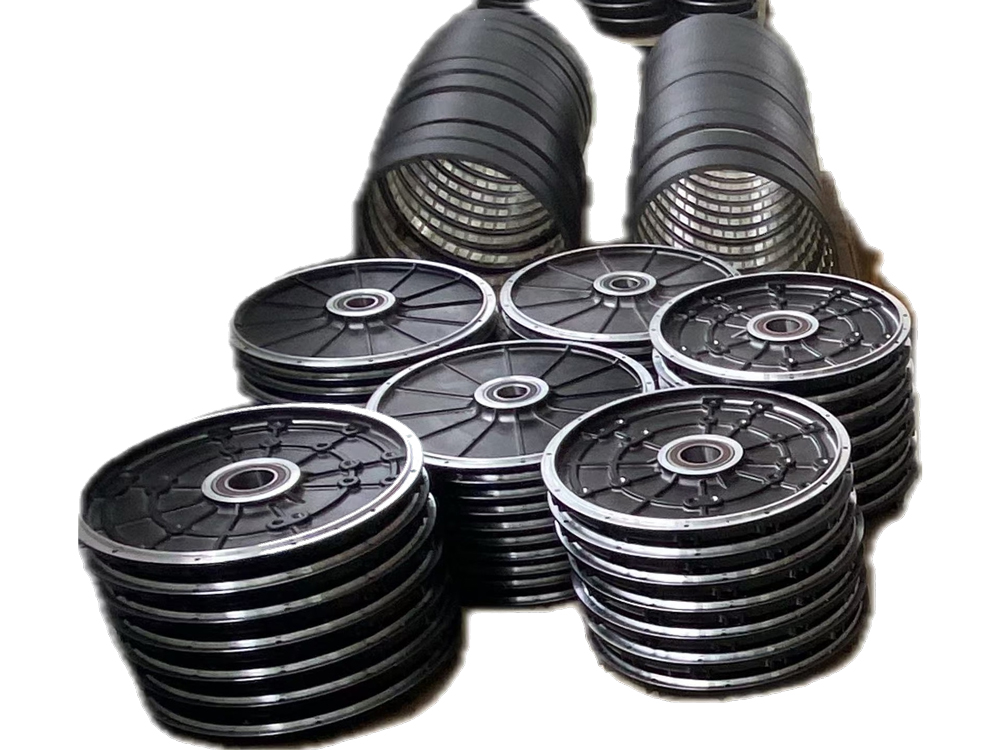

● The aluminum motor housing is a lightweight yet durable component designed to provide excellent heat dissipation and corrosion resistance. Its robust construction ensures optimal protection for internal motor parts, while the aluminum material enhances thermal management, making it ideal for high-performance applications in industries such as automotive, HVAC, and industrial machinery. The housing's sleek design also contributes to improved efficiency and longevity of the motor.
External reinforced clamp

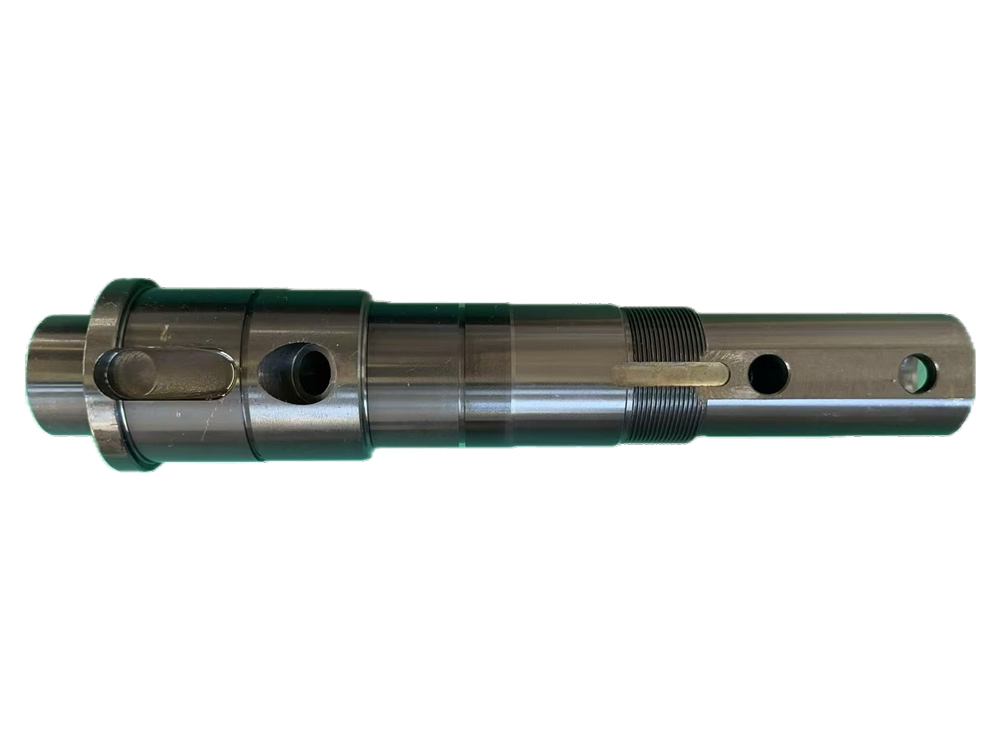

● The step-type motor shaft is engineered with a precision design to ensure that all assembly parts remain securely in place, eliminating the risk of detachment during operation. This robust construction enhances reliability and safety, making it ideal for applications requiring consistent performance and durability, such as industrial machinery, robotics, and automation systems. The step-type design also simplifies maintenance and improves overall operational efficiency.
