High-Speed/Low-Speed Permanent Magnet Motors from China Suppliers and Factory for Optimal Performance and Efficiency

Introducing our advanced permanent magnet motor system integration and optimization design platform, meticulously crafted for China's leading industries. This innovative platform synergizes various disciplines, including mechanics, electrical engineering, thermodynamics, and electromagnetics, to deliver unparalleled motor performance. By leveraging high-precision coupled simulations and experimental verification of magnetic fields, force fields, fluid dynamics, and temperature management, we ensure a comprehensive optimization process. Our motors are engineered for efficient, reliable, low-noise, and low-vibration operation, making them ideal for demanding applications, In addition, we offer a cutting-edge vector control platform for permanent magnet synchronous motors, built on a voltage feedforward approach. This technology enables precise control of current, voltage, rotor position, and temperature fields, resulting in high efficiency, exceptional precision, and superior output. As a trusted supplier and factory in China, we are dedicated to providing high-quality solutions that meet diverse industry needs. Experience the future of motor technology with our optimized systems today
    Contact us
    Product Details

    R&D advantages

    Advanced Control Technology:
    Utilizing advanced control technology enables precise control of the motor's operating status. This advanced technology results in a faster motor response, improving control accuracy and stability. Furthermore, the advanced control technology optimizes motor efficiency, further enhancing energy savings.

    Product Advantages

    High Efficiency

    The product utilizes high-magnetic-induction, low-iron-loss silicon steel and customized control technology, resulting in improved average motor efficiency and significant energy savings. This high efficiency and energy-saving feature allows the motor to operate efficiently across a wide range of applications.

    High Quality & Stable

    Production is controlled using MES and ERP systems. 4000-hour internal durability testing ensures stability. (Design for Product) verifies the impact of the environment.

    High Reliability

    The windings are monitored in real time, and fault information is fed back through the controller if the product is abnormal; the motor adopts external water cooling and internal oil cooling, which has a better cooling effect and a smaller size compared to air-cooled motors of the same power; the overall G1 dynamic balancing reduces the response caused by unbalanced mass.

    Motor specifications

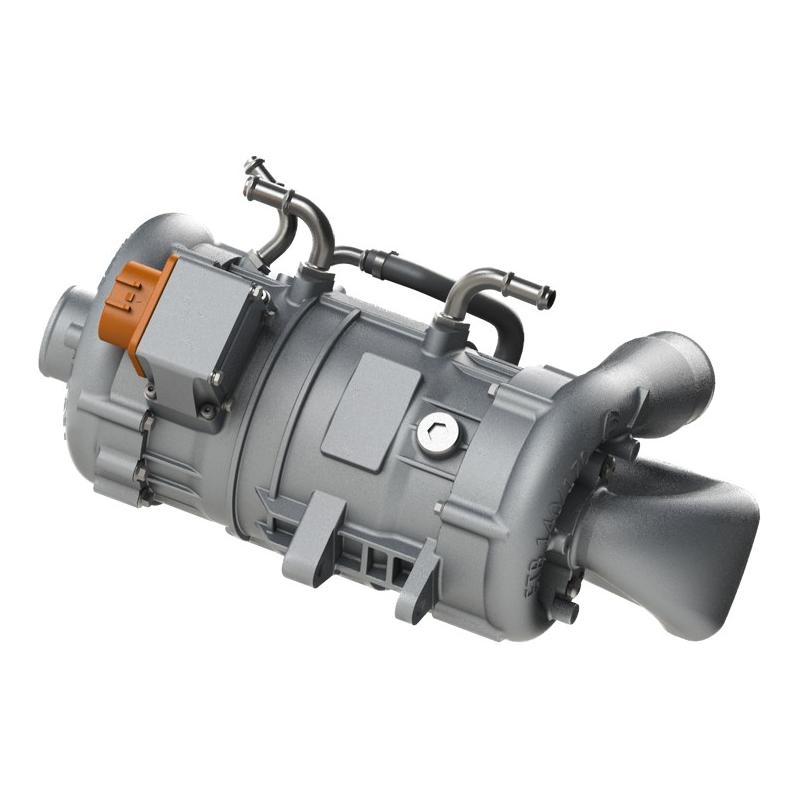

    06 Air bearing high-speed motor

    Model type Motor Power (KW) Rotational speed (RPM) Voltage (V) Electric current (A) Power Factor EFF B-EMF (VAC)
    LZ115-F54011F 5 39000 540VDC/380VAC 8.44 0.973 0.925 340
    LZ115-F54021F 7.5 34000 540VDC/380VAC 12.52 0.977 0.931 328
    LZ90-F54011A 18 110000 540VDC/380VAC 29.72 0.968 0.948 322
    LZ100-F54021A 25 80000 540VDC/380VAC 40.84 0.9768 0.952 315
    LZ200-F54021D 45 48000 540VDC/380VAC 73.5 0.956 0.962 305
    LZ200-F54031D 75 39000 540VDC/380VAC 122.53 0.9607 0.968 295

    06 Ceramic ball bearing high-speed motor

    Model type Motor Power (KW) Rotational speed (RPM) Voltage (V) Electric current (A) Power Factor EFF B-EMF (VAC)
    LZ110-F54011B 5 26000 540VDC/380VAC 9.58 0.943 0.925 338
    LZ110-F54021B 7.5 24000 540VDC/380VAC 12.87 0.951 0.931 328
    LZ110-F54031B 9 20000 540VDC/380VAC 15.52 0.941 0.936 322
    LZ160-F54041B 11 20000 540VDC/380VAC 18.91 0.932 0.948 315
    LZ160-F54051B 15 20000 540VDC/380VAC 25.44 0.941 0.952 305
    LZ160-F54061B 25 20000 540VDC/380VAC 41.51 0.957 0.956 295
    LZ160-F54071B 35 18000 540VDC/380VAC 57.22 0.967 0.961 290
    LZ160-F54081B 40 15000 540VDC/380VAC 66.78 0.945 0.963 290
    LZ160-F54091B 45 15000 540VDC/380VAC 74.81 0.947 0.965 290
    LZ160-F54101B 55 17000 540VDC/380VAC 92.13 0.938 0.967 285

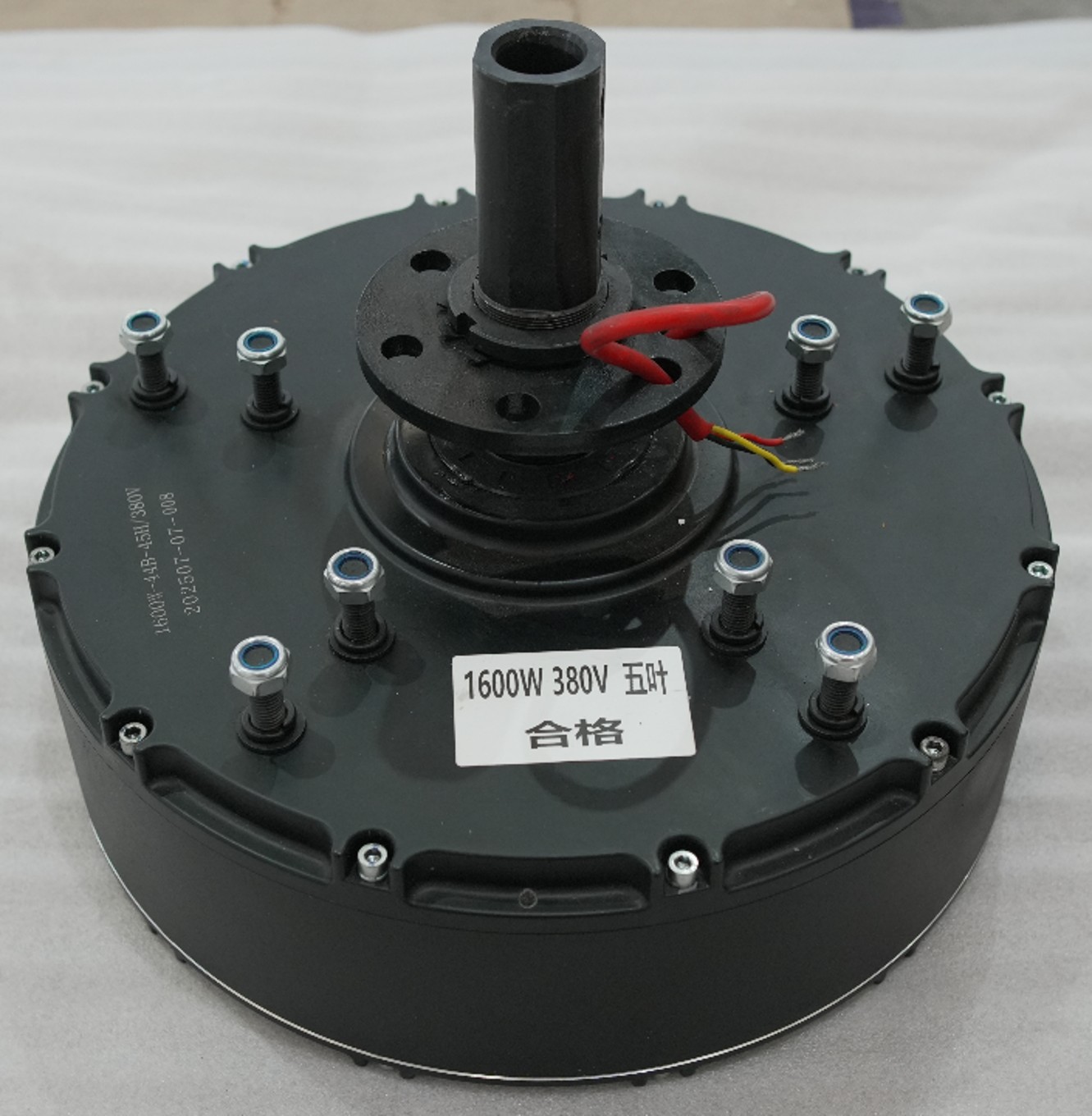

    06 Low Speed Motor

    Model type Motor Power (KW) Rotational speed (RPM) Voltage (V) Electric current (A) Power Factor EFF
    LZ-1500-55 1.5 55 540VDC/380VAC 2.9 0.95 0.81
    LZ-750-80 0.75 80 540VDC/220VAC 2.9 0.95 0.81
    LZ-450-100 0.45 100 540VDC/220VAC 1.3 0.95 0.82
    LZ-250-120 0.25 120 540VDC/220VAC 1.3 0.95 0.82

    Frequently Asked Questions (FAQ)

    What are the benefits of your Advanced Control Technology?
    Our advanced control technology enables precise control of the motor's operating status. This leads to a faster motor response, improved control accuracy, better stability, and optimized motor efficiency for enhanced energy savings.
    How do the motors achieve high efficiency and energy savings?
    We utilize high-magnetic-induction and low-iron-loss silicon steel paired with customized control technology. This combination improves the average motor efficiency and ensures significant energy savings across a wide range of applications.
    How is the quality and stability of the motors guaranteed?
    Production is strictly monitored and controlled using MES and ERP systems. Furthermore, stability is verified through 4000-hour internal durability testing and DFP (Design for Product) processes that verify environmental impacts.
    What reliability features are integrated into these motors?
    The motor windings are monitored in real time, and fault information is fed back instantly through the controller. Additionally, G1 dynamic balancing reduces vibrations caused by unbalanced mass.
    How does the cooling system work on these motors?
    The motors adopt a dual-cooling system consisting of external water cooling and internal oil cooling. This provides a significantly better cooling effect and allows for a smaller overall motor size compared to air-cooled motors of the same power.
    What types of high-speed and low-speed motors do you offer?
    We offer three main categories: Air bearing high-speed motors, Ceramic ball bearing high-speed motors, and Low-speed motors, with power ratings ranging from 0.25 KW to 75 KW depending on the model and application requirements.
