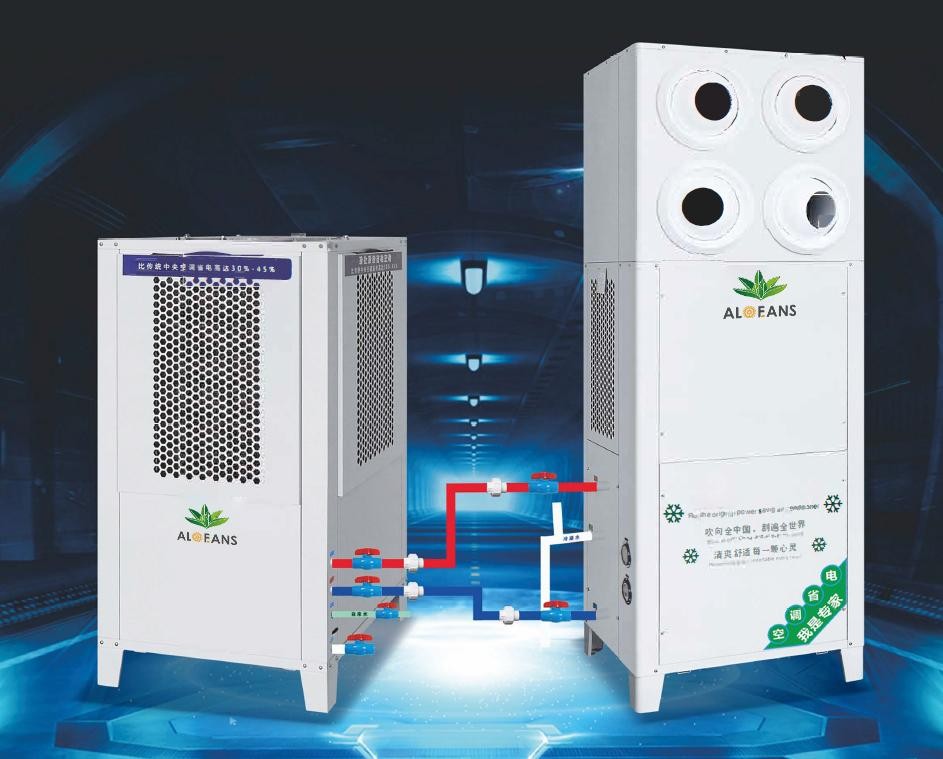

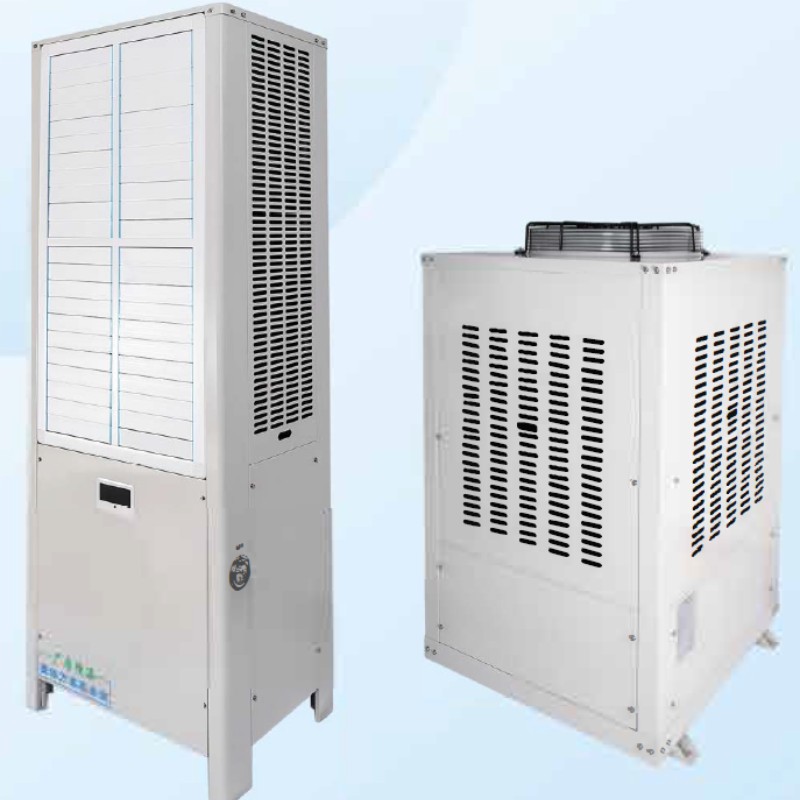

Industrial power-saving air conditioner cooling principle
Industrial power-saving air conditioning technology advantages
ALOE FANS industrial power-saving air conditioner is currently the preferred efficient cooling (water-cooled + air-cooled) dual cooling method. 1 lite of water evaporation heat intake of 2270 kilojoules, equivalent to 2300 BTU of cooling capacity.
The core component of ALOE FANS industrial power-saving air conditioner unit direct evaporative heat exchanger type 5090 "multi-layer corrugated fiber laminated" wet curtain is a patented product, with good water absorption and ventilation performance, the actual heat transfer area is 100 times the surface, water immersion resistance, corrosion resistance, normal service life of more than 5 years.
Water-cooled temperature reduction can reduce the water-cooled pressure of the refrigeration system and the exhaust pressure of the compressor, so that the compressor achieves the highest energy efficiency ratio and minimizes the input power of the compressor.
The water-cooled condensing temperature of conventional air conditioner is 56°C, while in the harshest environments, ALOE FANS’ power-saving air conditioner can also reduce the water-cooled condensing temperature to 35°C.
Meanwhile, in combination with ALOE FANS' traditional product HVLS fans, it can cool down the entire space in a more efficient, fast and energy-saving way. It is the most perfect cooling and ventilation solution at this stage, solving the defect that HVLS fans cannot reduce the ambient temperature in large spaces.
ALOE FANS Industrial Air Conditioner has four core components:
1. Compressor
Our company uses the century-old brand Copeland ZW165R410A environmentally friendly refrigerant.
Competitors use the new brand xecom with a factory age of 3 years.
2. Condenser (heat exchanger)
Our company uses the high-efficiency plate-type 316L heat exchanger, which is currently the most efficient in the world.
Competitors use cheap and heating-specific shell-and-tube heat exchangers. During the heat exchange process, 45-degree hot water is prone to scaling, and the refrigeration capacity is attenuated in a short period of time, which cannot achieve the expected effect. It is troublesome to clean.
3 Refrigerant energy-saving valves
Our company uses the world-renowned brand Sanhua electronic expansion valve. In the process of changing return air temperature, it plays a role in energy saving and efficiency improvement, fast cooling and significant energy saving (Ruishe has the national 3C mandatory certification)
Competitors still use traditional capillary throttling. When encountering changes in indoor working conditions, there is no energy saving and efficiency improvement. The compressor power cannot be adjusted according to the working conditions
4 External unit cooling system
Our company uses a high temperature 45 degree detection instant cooling system, which automatically and irregularly cleans the hot water and dirt in the water tank of the plate heat exchanger. The website and support frame of the external unit are made of 304 stainless steel, which will not affect the life due to long-term high temperature and high humidity
Competitors still use plastic water tanks, and the external unit fan uses traditional spraying. Long-term high temperature and high humidity will easily corrode and rust, and the life is not long.

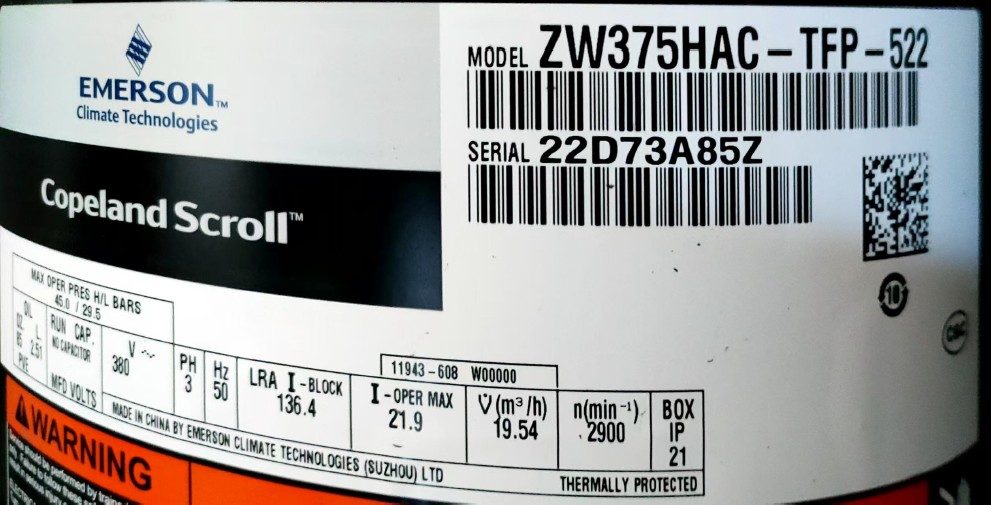

Compressor
The air conditioning brand Copeland compressor, model 375, is suitable for long-term operation in harsh environments. It has low noise, quieter than ordinary compressors and runs quietly. It has low energy consumption and unique compressor technology, with less power of the same horsepower.

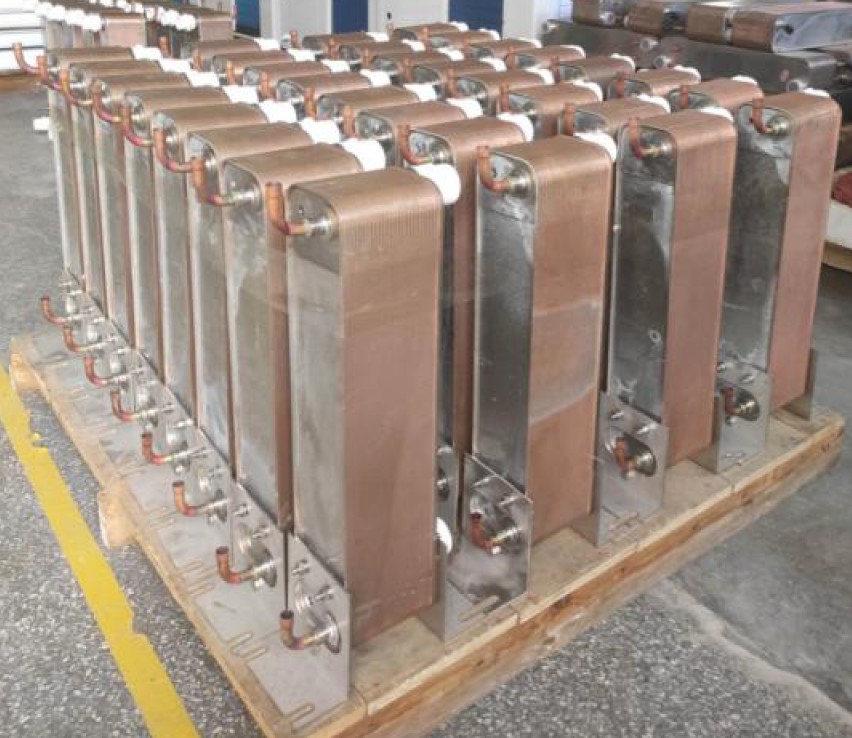

Heat Exchanger Plate
Made of 316L stainless steel, it has good heat exchange effect and the water temperature is 35℃. It has fast heat exchange and high conversion efficiency. It can be cleaned with acid cleaning agent at will, which is convenient for future cleaning and maintenance.

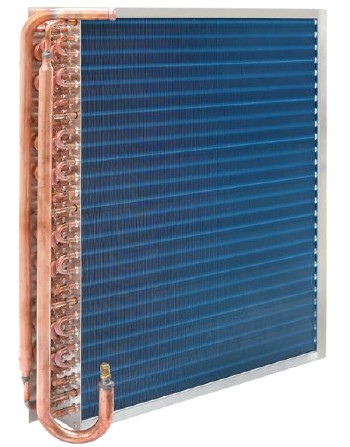

Evaporator
The double-row radiator is used, and the copper tubes are closely spaced, which is conducive to the rapid condensation of the refrigerant. The heat dissipation aluminum foil is spaced 2mm apart to increase the cooling conductivity.

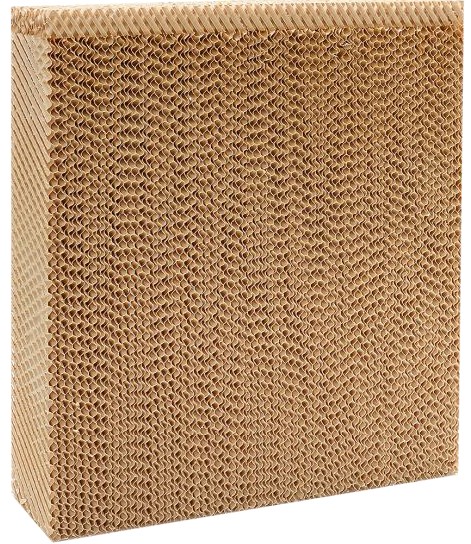

Evaporative condenser wet curtain
It has a national environmental protection test report and meets environmental protection standards. The material is non-corrosive and has no effect on the system and surrounding environmental equipment. The raw material is made of wood pulp and has no pungent odor. The adhesive glue uses environmentally friendly grade, has high adhesion, and is not easy to crack. The radiator is water-cooled, and the cooling effect is improved by more than 30% in high temperature environment.

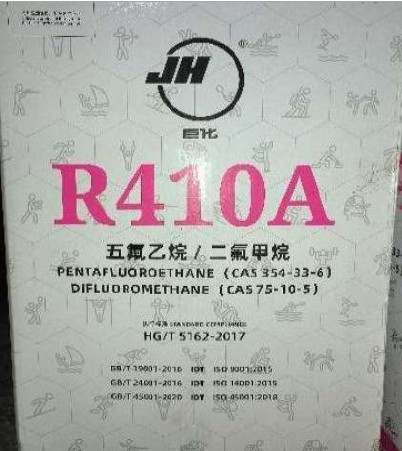

Refrigerant
The refrigerant is an environmentally friendly refrigerant compound. The country advocates energy conservation and environmental protection, and it does not damage the ozone layer. It is safer without the risk of combustion and explosion. The heat transfer is more efficient, and the cooling effect is higher in high temperature environments. The condensation efficiency is increased by more than 6%. The energy efficiency ratio is high and more energy-saving.

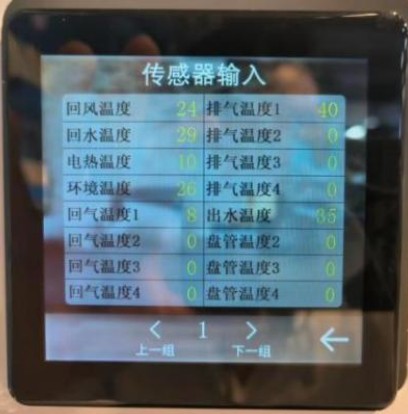

Control Panel
Supports multiple languages.The touch screen panel makes the monitoring system data more accurate. There are more than 20 detection probes inside the device to detect the unit usage in real time, and there will be an alarm prompt if the data is abnormal. It supports multiple fault protection functions to protect the stability of the unit. The system supports OTA upgrades.
| Model | ALOEAC-17 | ALOEAC-28 | ALOEAC-35 | ALOEAC-53 |
| Nominal cooling capacity | 17KW | 28.5KW | 35KW | 53KW |
| Rated power | 3.7W | 6.5KW | 6.8KW | 10.3KW |
| Maximum air volume | 5000m³/H | 9000m³/H | 10000m³/H | 12000m³/H |
| Air-out mode | Front exhaust | Front exhaust | Front exhaust | Front exhaust |
| Wind Sensing Distance | 10-15m | 10-15m | 10-15m | 10-15m |
| Installation mode | Floor stand | Floor stand | Floor stand | Floor stand |
| Input voltage | 380V 3N/50HZ | 380V 3N/50HZ | 380V 3N/50HZ | 380V 3N/50HZ |
| Input ourent | 10A | 17A | 18A | 28A |
| Energy efficiency ratio | 4.59 | 4.4 | 5.14 | 5.14 |
| Water storage capacity | 50L | 50L | 50L | 50L |
| Evaporation capacity | 35L/H | 35L/H | 50L/H | 50L/H |
| Rated flow | 6m³/H | 9m³/H | 12m³/H | 12m³/H |
| Inlet and outlet water pipe | φ32 | φ32 | φ32 | φ32 |
| Horizontal distance between connecting internal and external machines | 40-50m | 40-50m | 50-60m | 50-60m |
| Height diference between connecting internal and external machines | 10m | 10m | 10m | 10m |
| Protection grade | IPX4 | IPX4 | IPX4 | IPX4 |
| Refigerant | R410A | R410A | R410A | R410A |
| Noise | ≤53dB | ≤55dB | ≤65dB | ≤68dB |
| Weight | 158kg+105kg | 170kg+105kg | 213kg+116kg | 243kg+116kg |
| Indoor unit dimensions | 790*560*1860mm | 790*560*1860mm | 920*530*1990mm | 920*530*2140m |
| Outdoor unit dimensions | 780*780*1490mm | 780*780*1490mm | 890*890*1460mm | 890*890*1460mm |
| Applicable area | 150-200m² | 200-250m² | 250-350mm² | 350-450mm² |
