PMSM Motors - High-Efficiency, Precision-Driven Solutions for Advanced Applications
Product Features
Introduction to PMSM Motor
In advanced applications, the performance of the motor is critical to achieve optimal efficiency and precision. Our PMSM (Permanent Magnet Synchronous Motor) motors are specifically designed to provide efficient and precise drive solutions for HVLS (High Volume Low Speed) fans and other advanced systems. Focusing on durability, energy efficiency and versatility, our PMSM motors are designed to meet the demanding requirements of a wide range of applications.
Efficient and Cost-Saving
One of the standout features of our PMSM motors is their high efficiency. These motors are designed to deliver exceptional performance while minimizing energy consumption. This energy-efficient design not only helps reduce operating costs, but also helps create a more sustainable environment. By efficiently powering HVLS fans, our PMSM motors help maintain comfortable temperatures in large spaces, reducing reliance on traditional air conditioning systems. This can result in significant savings on energy bills, making our motors a smart investment for any facility.
Precise Control for Optimal Performance
Our PMSM motors provide precise speed and torque control for optimal operation in a wide range of applications. This level of control is critical in environments that require specific airflow rates and conditions. The ability to adjust motor performance based on real-time needs ensures your system operates efficiently, increasing overall productivity. Whether used in industrial settings or agricultural applications, our motors provide the precision required for advanced operations.
Durable Construction, Built to Last
Our PMSM motors are made from high-quality materials to withstand the rigors of continuous operation in harsh environments. The robust design ensures longevity and reliability, even under harsh conditions. Each motor is rigorously tested to meet our high standards for performance and durability. This commitment to quality means you can trust our motors to deliver consistent performance for years to come, reducing the need for frequent replacement and maintenance.
Multi-Functional Applications Across Industries
Our PMSM motors are suitable for a wide range of applications, especially HVLS fans used in large industrial, commercial and agricultural environments. Whether you need to cool a warehouse, gymnasium or livestock facility, these motors provide an effective and efficient airflow solution. Their versatile design easily integrates into a variety of ventilation systems, ensuring you can maintain optimal airflow without compromising functionality or performance.
Technical Specifications of the Aloecore Series
|
Model |
Power |
Torque |
Efficiency rate |
Motor pole |
Rotation |
IP |
Current |
Motor Weight |
Motor Diameter |
Magnet Wire |
Magnet Iron |
Ground insulation |
Pressurization Test standard |
|
Core15 |
1.5KW |
230Nm |
81.50% |
44 |
60rpm |
IP55 |
3.4A |
42.5KG |
400mm |
Anti 200°C |
N48SHT |
300mΩ |
2000V |
|
Core8 |
0.8KW |
95Nm |
5.50% |
32 |
85rpm |
IP55 |
2.8A |
25.5KG |
270mm |
Anti 200°C |
N48SHT |
300mΩ |
1500V |

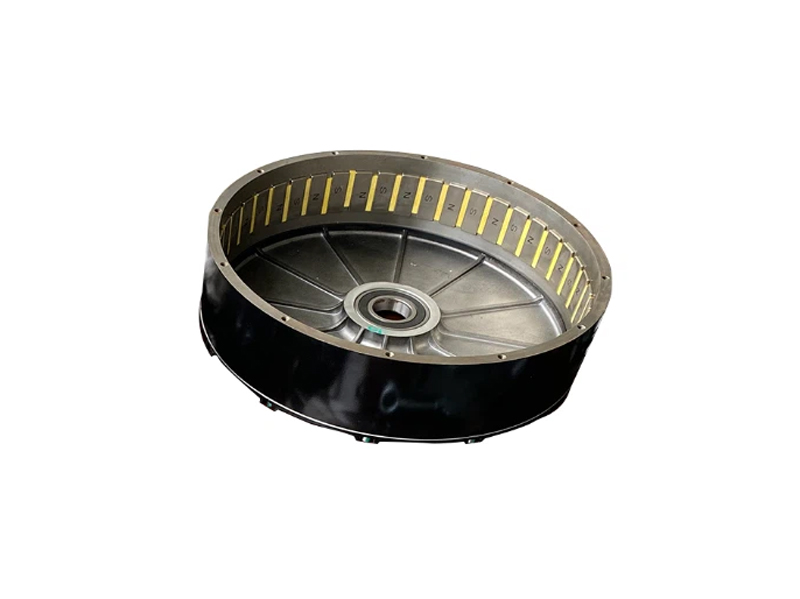

Product Details

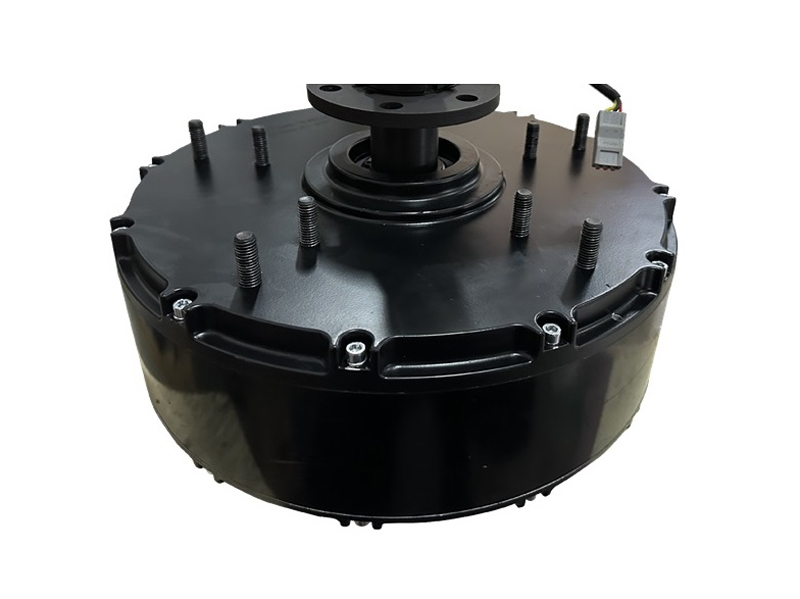

PMSM motor
● The HVLS fan is powered by a domestically produced permanent magnet synchronous motor (PMSM), which operates directly without the need for a gearbox or transmission lubricant. This design ensures maintenance-free operation, with motor efficiency reaching up to 81.5%.
●Featuring an IP55 protection rating, the motor is highly efficient and energy-saving, boasting a lifespan of over 10 years. Weighing 42.5 kilograms, it consumes only 1.5 kilowatt-hours per hour even at maximum wind speed.
